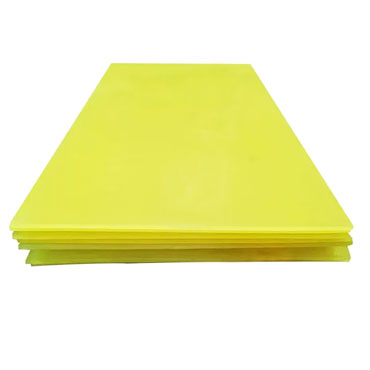

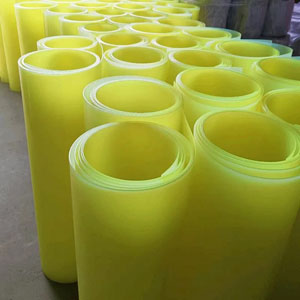

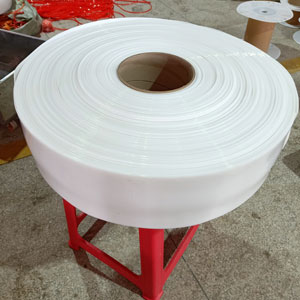

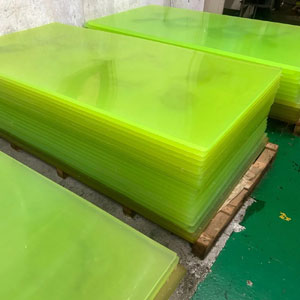

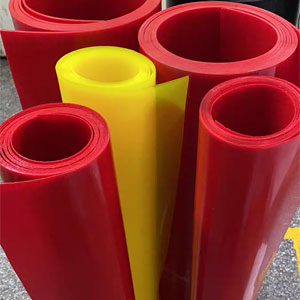

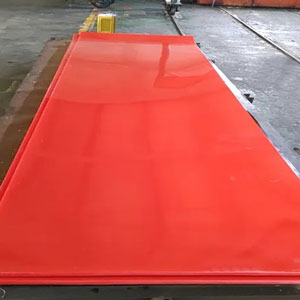

Polyurethane Sheet

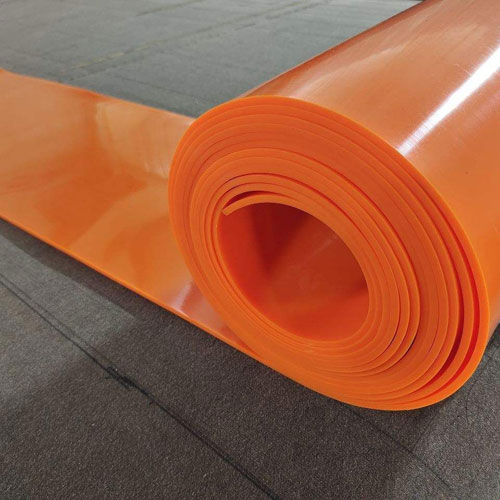

Our polyurethane sheets are available in plastic-like (rigid) or rubber-like (flexible) grades, ideal for cutting, machining, or fabricating rollers, gaskets, wear pads, and industrial components. Standard thicknesses include 2mm, 3mm, 5mm, and 10mm, with fully customizable sizes for OEM and industrial applications.

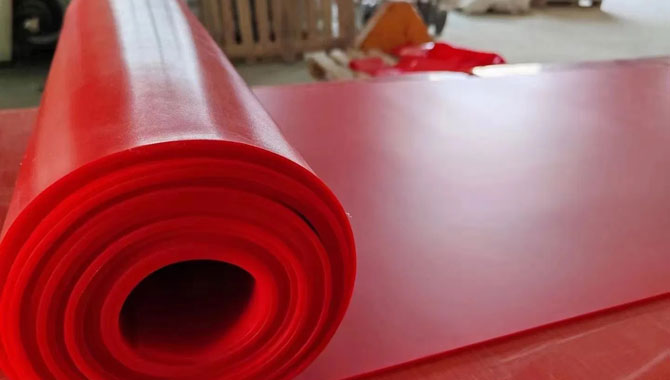

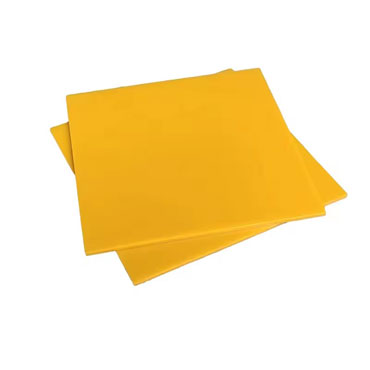

Custom & Flexible Polyurethane Sheets – OEM PU Sheet Solutions
Technical Options – Custom Polyurethane Sheets
- Thickness range: 1mm–40mm (custom);
- Sheet size / roll width: 100mm–1000mm, length: 100mm–4000mm;
- Hardness range: Shore A 60–95;
- Material type: Cast PU vs Extruded PU;
- Colors & formulations: Custom colors and chemical-resistant or abrasion-resistant grades;
- Machinability: CNC, milling, drilling.
- OEM support: Batch production according to drawings or samples.

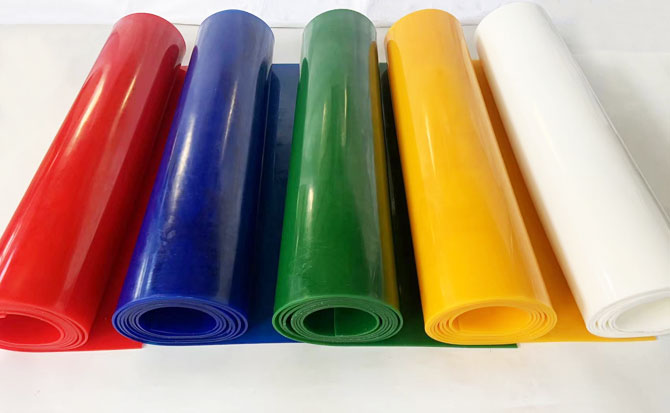

Applications of Polyurethane Sheets & Rolls
- Wear pads and liners;
- Rollers and guides;
- Gaskets and seals;
- Conveyor and material handling components;
- Vibration-damping and impact protection.

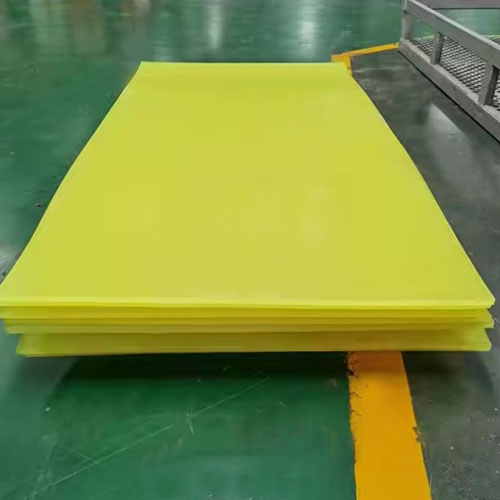

Cast & Extruded Polyurethane Sheets – Industrial PU Sheet Materials
- Product Specifications
- Gallery
| Specification | Details |
| Material Type | Polyurethane Elastomer (PU) |
| Manufacturing Process | Cast Polyurethane Sheet / Extruded Polyurethane Sheet |
| Thickness Range | Standard: 1–20 mm Cast PU: up to 100 mm+ (custom) |
| Sheet Size | Standard: 1000 × 2000 mm, 1200 × 2400 mm Custom cut-to-size available |
| Hardness Range | Shore A 60–95 (custom grades available) |
| Color Options | Natural, Black, Red, Yellow, Custom colors |
| Surface Finish | Smooth (standard) Textured or patterned (optional) |
| Mechanical Properties | High abrasion resistance, Excellent tear & impact strength, Low compression set, Good vibration damping; |
| Chemical Resistance | Resistant to oils, grease, and many industrial chemicals |
| Machinability | CNC machining, turning, milling, drilling |
| Operating Temperature | –30 °C to +80 °C (special grades available) |
| Applications | Wear pads, liners, rollers, guides, gaskets, seals, conveyor components |
| Customization & OEM | Custom thickness, size, hardness Cut-to-length / cut-to-shape OEM production by drawing or sample |

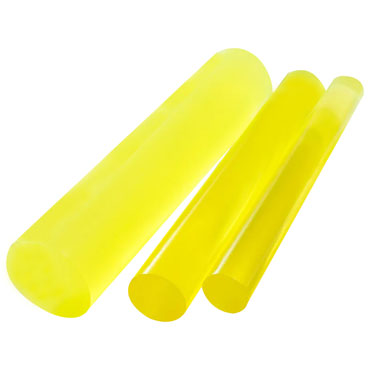

Related Products
Industrial Polyurethane Sheet Suppliers
As experienced industrial PU sheet suppliers, we provide cast and extruded sheets with consistent quality, custom sizing, and OEM support, helping manufacturers reduce wear, downtime, and replacement costs.
A polyurethane sheet is a high-performance elastomer with abrasion, impact, and chemical resistance. Used in mining, material handling, automotive, packaging, and industrial machinery applications.
Available from 1–3mm thin gauges up to 50mm+, hardness ranges from soft flexible to rigid industrial grades for diverse applications.
Yes — cut-to-size PU sheets reduce waste and fit directly into production or fabrication processes.
Cast sheets: higher strength, abrasion resistance, suitable for thick sections and CNC machining. Extruded sheets: uniform surface, cost-effective, ideal for thin sheets and roll formats.
Yes — PU sheets can be cut, milled, drilled, or CNC-machined to create liners, gaskets, or wear strips for OEM assemblies.
